            歡迎光臨~衡水乾力電機制造有限公司

            產品展示

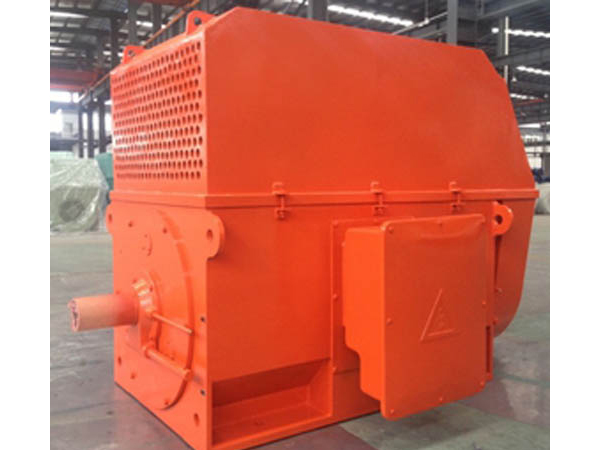

            門頭溝YX, YXKS, YXKK 系列10kV (H355~630)中型高壓高效三相異步電動機

            商品編號:

            產品品牌:品牌一

            產品類型:類型一

            產品顏色:

            點擊次數:3843

            上架時間:2021-09-07

            全國服務熱線:13663288881

            我要詢價

            產品描述


             概述  Summary
             額定功率:200~2240kW   Rate power: 200~2240kW
             額定電壓:10kV     Rate voltage: 10kV
             機座號:450~630  Frame size:  450~630
             極數:2~12極    Poles:  2~12p
             防護等級:YX 系列:IP23
                               YXKS、YXKK系列:IP55

             Protection degree: YX series: IP23

                                           YXKS、YXKK series: IP55

             冷卻方式:YX 系列:IC01

                               YXKS系列:IC81W

                               YXKK系列:IC611或IC616

             Cooling method: YX series: IC401

                                        YXKS series: IC81W

                                        YXKK series: IC611 or IC616

             能效等級:GB30254-2013 2級

             (≥355kW可享受 惠民產品補貼)

             Efficiency class: GB30254-2013 grade 2
              (≥355kW with state subsidies)



              結構特點  Structural characteristics
              該系列電機采用箱式鋼板結構,拆下冷卻器或防護罩即可觀察和觸及電機內部,便于電機的安裝維護;定轉子鐵芯均采用低損耗高導磁的冷軋硅鋼片;轉子采用籠型鑄鋁轉子,一次成型,也可根據客戶需求生產銅條轉子,提高了運行可靠性;定子采用F級絕緣真空壓力浸漬無溶劑工藝處理(VPI),使電機具有可靠的絕緣性能和防潮、抗沖擊能力;定子和軸承均裝有PT100測溫元件,電機軸承均有不停機注油和排油裝置,提高了電機自身的保護能力和運行效率。
            This series motors with box type steel structure, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; Rotor and stator are all made from low loss and high magnetic conductivity silicon steel; The cage structure rotor made by once forming process or copper strip rotor made by mid-frequency welding process, improve the reliability of the motor; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling pipe and oil exit pipe, improve the protection ability and operation efficiency of the motors.
